Special Doors

We offer security systems without compromise. We help You to find solution for your needs.

Security doors are functionally and structurally complex, with all moving parts being subjected to particularly heavy loads during everyday use of the building. Each of these individual door functions is relevant to security. This means that they need to function reliably with the complete door system for the long term.

Schüco ADS 90 BR FB4

  • Bullet resistance for doors of class FB4 by plug-in technology
  • High thermal insulation by foam-filled insulating bars
  • Fully tested in accordance with EN 1522 for bullet resistance
  • Stable prechamber hollow profiles
  • Single and double-leaf doors inward / outward opening with side panels / skylights
  • Leaf weight up to 300 kg
  • Leaf sizes up to 1300 mm x 2500 mm
  • Narrow profile face widths, compatible with standard series
  • Combination with façade FB4

Aluminium door S2es-d series

Forced entry resistance

  • Frame and special glazing tested as a complete unit in various designs in accordance with DIN EN 1627-1630 up to RC5. A note about the glazing: In the high resistance classes RC5 and RC6, the P7B and P8B glazing tested in line with DIN EN 356 must be replaced with glazing of higher quality, as it is only tested with blows with an axe. This glazing cannot withstand attacks with the electrical tools used in these high burglar resistance classes.

Bullet resistance

  • In accordance with DIN EN 1522-1523 up to FB7-NS, glazing in accordance with DIN EN 1063 up to BR7-NS.

Blast resistance

  • In accordance with DIN EN 13123-2 and DIN EN 13124-2 up to EXR2. Tested in accordance with customer-specific requirements, e.g. with 500 kg of explosives in 28 m. Glazing as per SÄLZER design. GSA 2 ("Very High" protection level), ISO B ("No Hazard" hazard rating).

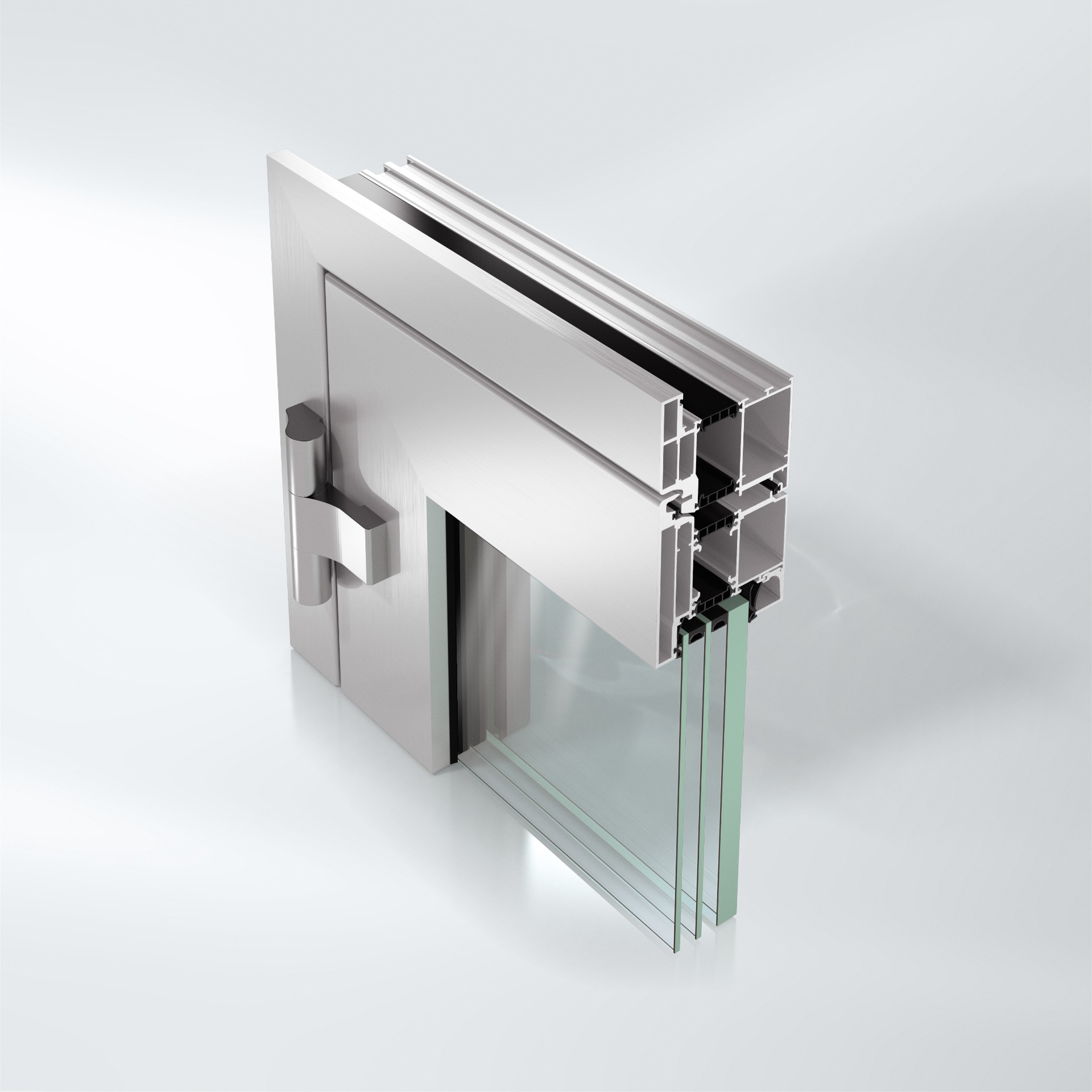

Aluminium door S6es-d series

Forced entry resistance

  • In accordance with DIN EN 1627-1630 up to RC4, glazing in accordance with DIN 356 up to P8B.

Bullet resistance

  • In accordance with DIN EN 1522-1523 up to FB4-NS, glazing in accordance with DIN EN 1063 up to BR4-NS.

Blast resistance

  • In accordance with DIN EN 13123-2 and DIN EN 13124-2 up to EXR2. Tested in accordance with customer-specific requirements, e.g. with 500 kg of explosives in 28 m. Glazing as per SÄLZER design. GSA 2 ("Very High" protection level), ISO B ("No Hazard" hazard rating).

Steel door S4 series

Forced entry resistance

  • According to DIN EN 1627-1630 up to RC6. A note about the glazing: In the high resistance classes RC5 and RC6, the P7B and P8B glazing tested in line with DIN EN 356 must be replaced with glazing of higher quality, as it is only tested with blows with an axe. This glazing cannot withstand attacks with the electrical tools used in these high burglar resistance classes.

Bullet resistance

  • According to DIN EN 1522-1523 resp. glazing according to DIN EN 1063 up to FB7-NS resp. glazing up to BR7-NS.

Blast resistance

  • In accordance with Din EN 13123-2 and DIN EN 13124-2 up to EXR5, reflected pressure of 2,750 kPa (20kg | 4 m). Tested in accordance with customised requirements with different explosive charges e.g. 100 kg in 10 m or 500 kg blasted in 28 m. Sector specific tests e.g. for the petrochemical industry, double door glazed door, peak pressure pmax = 93 kPa, positive pressure duration t+total = 4.5 sec. Glazing according to SÄLZER specification. Classified: GSA 2 (Protection Level, "Very High"), ISO B (Hazard-Rating, "No Hazard").

Fire resistance

  • Depending on the design variant and further protection, fire protection up to T90/EI90, EI45,T30/EI30. Tested in accordance with British Standard BS 476: 120 Min. (actual test duration 150 Min.).

Smoke resistance

  • Depending on the design variant and further protection, smoke resistance up to S200.

SECUFIRE® steel tubular frame door

Forced entry resistance

  • In accordance with DIN EN 1627-1630 up to RC4, glazing in accordance with DIN EN 356 up to P8B.

Break-out resistance

  • Tested from both sides in accordance with DIN EN 1627-1630 up to RC4, glazing in accordance to DIN EN 356 up to P8B.

Bullet resistance

  • In accordance with DIN EN 1522-1523 up to FB4-NS, glazing in accordance with DIN EN 1063 up to BR4-NS.

Blast resistance

  • Tested in accordance with customer-specific requirements, e.g. with 500 kg of explosives in 28 m. Glazing as per SÄLZER design. GSA 2 ("Very High" protection level), ISO B ("No Hazard" hazard rating).

Fire resistance

  • Depending on the design variant and further protection, fire protection up to T30/EI 30

Smoke

  • Depending on the design variant and further protection, smoke protection up to S200.

Prison and detention cell door series S4Z

Tested and certified in accordance with the European standard and guidelines for prison and detention cell doors, it features a robust design and offers no opportunities for suicide attempts.

The door was tested from both sides in the resistance level RC 4 (DIN EN 1627-1630):

  • From the exterior side (corridor side, against forced entry respectively release attempts) and additionally
  • From the interior side (cell side, against break out attempts).

Tested according to the guidelines for cell doors of the federal state of Saxony-Anhalt.

The test results in detail:

  • At an edge load of 2 t - the deflection was < 3 mm and
  • At a static load of 2.5 t - the deflection was < 6.5 mm and
  • At a torsion load of 2.0 t - the deflection was < 4 mm: 1.3 t load / deflection <80 mm).
  • Similarly, the door must be operable with a key from the corridor without further technical aids after 15 min. fire exposure inside the cell.

Supplementary equipment

Food hatch

Robust steel construction that is flush fitted on the cell side. Two reinforced hinges also function as limiting stays. Food hatch lock available as an option.

Door viewer (standard)

Angle of vision up to 200°.

Tamper and vandalism-proof door viewer

Brief description:

  • Angle of vision up to 150°.
  • No screws installed on the cell side (tamper-proof).
  • Operation on the corridor side by authorised personnel.

Benefits: 3 settings

  • Blind setting (closed), inmates cannot tamper with the device from the cell side.
  • Observation setting, noiseless opening from the corridor side, view of the entire room.
  • Open setting, e.g. for passing through medicine and for cleaning if the viewer is dirty.

Security chain

Solid, robust security chain developed for extreme everyday use in prisons or by the police. The mounting plate is attached to the frame trim and the locking rail is mounted on the door leaf. The chain can also be hung on both sides if required.

Inspection window

The armored glass pane in accordance with DIN EN 356 can be integrated into the door leaf in different shapes and sizes up to the highest resistance class. An optional safety screen can be attached on the corridor side.

Fanlight

Video technology and lighting systems, for example, can be installed in the fanlight. It is secured on the cell side with flush-fitted armored glass in accordance with DIN EN 356.

Quick-release mechanism by means of sliding bolt or handle

  • Quick-release function by means of sliding bolt: two solid sliding bolts made from steel flat secure the door as quickly as possible.
  • Quick-release function by means of handle: easy, fast and reliable locking by means of lever bolt.

Vandalism-proof door status display
